Theory

We give a brief theoretical description of large-scale structure formation to provide a foundation for this package.

• We review how to obtain initial conditions by sampling both an unconstrained and a constrained Gaussian random field
• We discuss how to evolve these initial conditions into the cosmic web with an $N$-body simulation
• Finally, we discuss how we evaluate the density, velocity and number of stream fields with the Phase-Space Delaunay Tessellation Field Estimator.

For an introduction to cosmology and large-scale structure formation, we refer to Introduction to Cosmology by Barbara Ryden. For more information on Gaussian random field theory and the Phase-Space Delaunay Tessellation Field Estimator see this introduction and the PhaseSpaceDTFE.jl package.

Cosmology

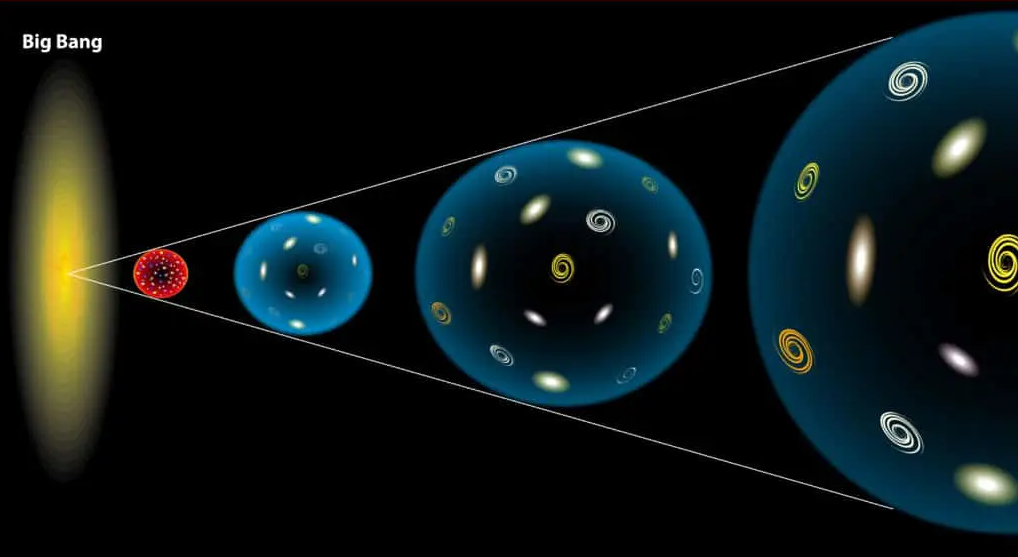

Einstein's theory of gravitation turned our Universe into a dynamical object. Space-time expands and contracts as a function of its energy content.

In a homogenous and isotropic Friedmann–Lemaître–Robertson–Walker universe, the Einstein field equations reduce to the Friedmann equation

\[H(t)^2 = \left(\frac{\dot{a}(t)}{a(t)}\right)^2 = H_0^2\left[ \frac{\Omega_{0, r}}{a(t)^{4}} + \frac{\Omega_{0,m}}{ a(t)^{3}} + \frac{\Omega_{0,k}}{ a(t)^{2}} + \Omega_{0,\Lambda}\right]\,.\]

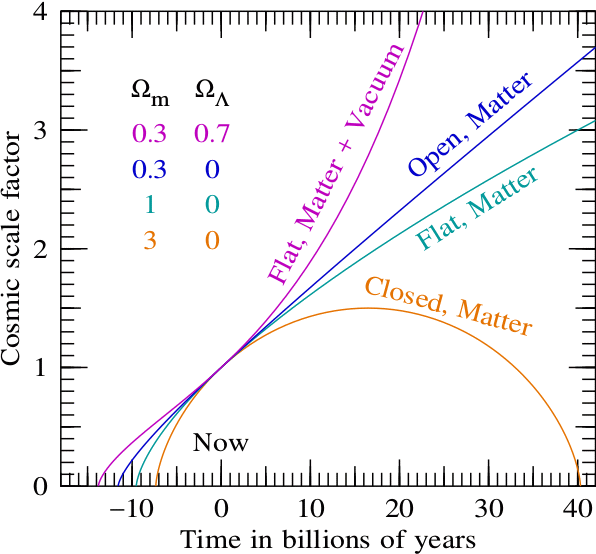

The Friedmann equation describes the expansion history of our Universe through the scale factor $a(t).$ At the Big Bang, the Universe was infinitesimally small, corresponding to the scale factor $a(0)=0.$ As the Universe expands, with the expansion rate $H(t)=\dot{a}(t)/a(t)$ known as the Hubble parameter, the scale factor increases to the scale factor today $a(t_0)=1.$ The evolution is expressed in terms of the current Hubble parameter $H(t_0)=H_0,$ the current radiation density parameter $\Omega_{0,r},$ the current matter density parameter $\Omega_{0,m},$ the current curvature parameter $\Omega_{0,k}$ and the dark energy parameter $\Omega_{0,\Lambda}.$ See the figures below for a set of possible expansion histories.

Initial conditions

The initial conditions in cosmology are commonly described by the density perturbation

\[\delta(\bm{q}) = \frac{\rho(\bm{q})}{\bar{\rho}} - 1\,,\]

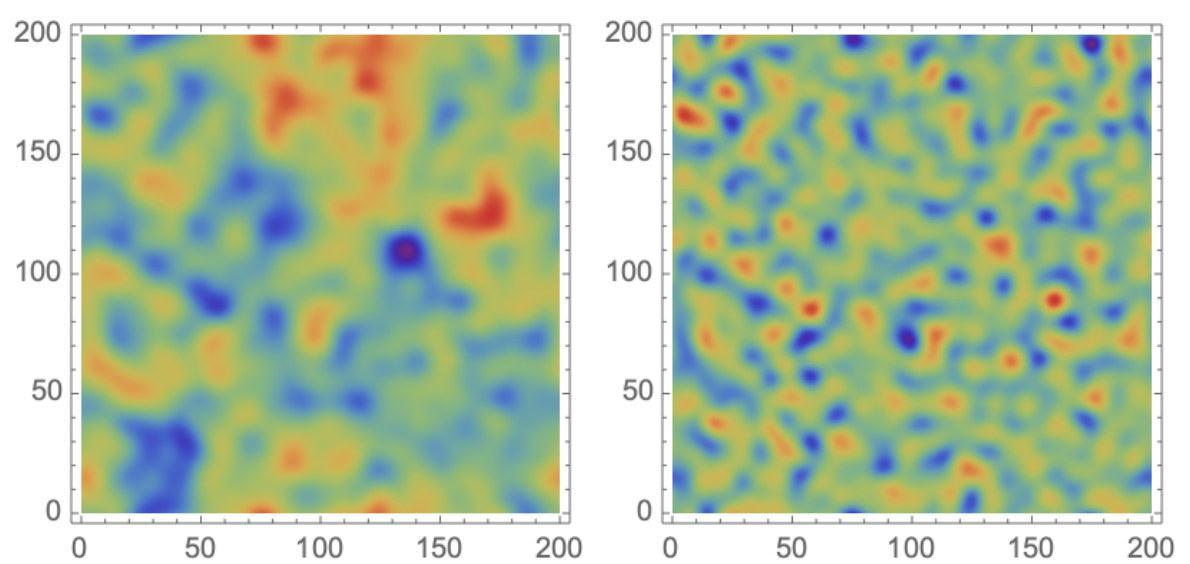

with the density $\rho(\bm{q})$ at $\bm{q}$ and the mean density $\bar{\rho}.$ After the epoch of recombination, these fluctuations gravitationally collapsed to form the present day cosmic web. Early Universe models typically describe the density perturbation $\delta:\mathbb{R}^d \to \mathbb{R}$ on the space $\mathbb{R}^d$ in terms of random fields. Instead of predicting a particular distribution of the energy in the early universe, the theories describe its statistical properties. We will here restrict attention to Gaussian random fields. For an example of a realization see the figure below.

Gaussian random fields

By construction, the density perturbation has zero mean

\[\langle \delta \rangle = \langle \rho(\bm{q}) \rangle / \bar{\rho} - 1 =0\,.\]

When $\delta$ is a realisation of a stationary Gaussian random field, the spatial correlations are fully characterised by the two-point correlation function

\[\xi(\bm{q}_1,\bm{q}_2) = \langle \delta(\bm{q}_1) \delta(\bm{q}_2) \rangle\,,\]

through the functional distribution

\[p(\delta) = e^{-\frac{1}{2} \iint \delta(\bm{q}_1) K(\bm{q}_1,\bm{q}_2) \delta(\bm{q}_2)\mathrm{d}\bm{q}_1\mathrm{d}\bm{q}_2}\,.\]

The kernel $K$ is defined as the inverse of the two-point correlation function

\[\int K(\bm{q}_1,\bm{q}) \xi(\bm{q},\bm{q}_2) \mathrm{d}\bm{q} = \delta_D^{(d)}(\bm{q}_1 - \bm{q}_2),\]

with $\delta_D^{(d)}$ the $d$-dimensional Dirac delta function. Given a set of fields $S,$ the probability that $\delta \in S$ is given by the functional integral

\[P[\delta \in S] = \int_S e^{-\frac{1}{2} \iint \delta(\bm{q}_1)K(\bm{q}_1,\bm{q}_2) \delta(\bm{q}_2)\mathrm{d}\bm{q}_1 \mathrm{d}\bm{q}_2} \mathcal{D}\delta\]

with $\mathcal{D}\delta$ the path integral measure. From the cosmological principle it follows that the initial conditions of our universe are statistically homogeneous (all points are statistically equivalent) and statistically isotropic (all directions are statistically equivalent). For a statistically homogenous and isotropic random field, the two-point correlation function and the inverse $K$ only depends on the distance between the points, i.e.

\[\xi(\bm{q}_1,\bm{q}_2) = \xi(\|\bm{q}_1-\bm{q}_2\|).\]

Fourier space

Gaussian random fields are conveniently described in terms of Fourier space. Given the Fourier transform

\[\hat{\delta}(\bm{k}) = \int \delta(\bm{q}) e^{i \bm{k}\cdot \bm{q}} \mathrm{d}\bm{q}\,,\]

the two-point correlation function of the Fourier modes is diagonal

\[\langle \hat{\delta}(\bm{k}_1) \hat{\delta}^*(\bm{k}_2)\rangle =(2\pi)^d \delta_D^{(d)}(\bm{k}_1-\bm{k}_2) P(\|\bm{k}_1\|),\]

where the power spectrum $P(k)$ is the Fourier transform of the correlation function

\[P(k) = \int e^{i \bm{k} \cdot \bm{r} } \xi(\|\bm{r}\|) \mathrm{d}\bm{r}\,.\]

As it turns out, the Fourier modes are independent Gaussian variables

\[p(\hat{\delta}) = \exp\bigg[-\frac{1}{2}\int \frac{|\hat{\delta}(\bm{k})|^2}{P(\|\bm{k}\|)}\frac{\mathrm{d}\bm{k}}{(2\pi)^d} \bigg]\,,\]

modulo the reality condition

\[\hat{\delta}^*(-\bm{k}) = \hat{\delta}(\bm{k})\,.\]

A reasonable model for the primordial displacement potential is the power-law power spectrum smoothed with a Gaussian filter

\[P_\phi(k) = \frac{α^2 4 \pi R_s^{2 + n_s}}{\Gamma\left(1 + \frac{n_s}{2}\right)} k^{n_s - 4} e^{-R_s^2 k^2}\,,\]

with the spectral index $n_s,$ the smoothing length $R_s,$ and normalization constant $\alpha.$

Sampling initial conditions

In the discussion above, we observe that Gaussian random fields are most easily expressed in Fourier space as the exponent of the distribution is diagonal in $\hat{\delta}.$ Generating an unconstrained realization of a Gaussian random field on a regular lattice $\{ \bm{q}_{i_1,\dots,i_d}\},$ with the values $\delta_{i_1,\dots,i_d} = \delta(\bm{q}_{i_1,\dots,i_d}),$ reduces to sampling the normally distributed Fourier modes $\hat{\delta}_{i_1,\dots,i_d}$ and a single Fast Fourier transform.

When studying the formation of a specific geometric feature in the cosmic web, it is convenient to sample the initial conditions subject to linear constraints

\[\Gamma = \{ C_i \equiv C_i[\delta;\bm{q}_i] = c_i| i = 1,\dots,M\},\]

at the points $\bm{q}_i$ and values $c_i \in \mathbb{R}$ for $i=1,\dots, M.$ Linear constraints include the function value in a point

\[C[\delta;\bm{q}_i] = \delta(\bm{q}_i),\]

a derivative

\[C[\delta;\bm{q}_i] = \frac{\partial \delta}{\partial q_i} (\bm{q}_i),\]

or more generally, a convolution with some kernel $g,$

\[C[\delta;\bm{q}_i] = \int g(\bm{q}_i - \bm{q})\delta(\bm{q}) \mathrm{d}\bm{q}.\]

Constrained Gaussian random fields with linear constraints are efficiently sampled with the Hoffman-Ribak algorithm. First, using Bayes formula, we write the conditional distribution

\[p(\delta|\Gamma) = \frac{p(\delta, \Gamma)}{p(\Gamma)} = \frac{p(\delta)}{p(\Gamma)},\]

where $p(\delta, \Gamma) = p(\delta)$ since $\Gamma$ is a linear functional of $\delta.$ Since the constraints $C_i$ are linear, the distribution $p(\Gamma)$ is Gaussian,

\[p(\Gamma) = \frac{\exp\left[-\frac{1}{2} \bm{C}^T Q^{-1} \bm{C}\right]}{\sqrt{(2\pi)^M \det Q}},\]

with the vector $\bm{C}=(C_1,\dots,C_M)$ and the covariance matrix

\[Q = \left\langle \bm{C}^T \bm{C}\right\rangle.\]

The constrained distribution thus takes the form

\[p(\delta|\Gamma)= \sqrt{(2\pi)^M \det Q} \ e^{-\frac{1}{2} \left(\iint \delta(\bm{q}_1) K(\bm{q}_1-\bm{q}_2) \delta(\bm{q}_2) \mathrm{d} \bm{q}_1 \mathrm{d}\bm{q}_2 - \bm{C} Q^{-1} \bm{C}\right)}\,,\]

which we can rewrite as

\[p(\delta|\Gamma)= \sqrt{(2\pi)^M \det Q}e^{-\frac{1}{2} \iint F(\bm{q}_1)K(\bm{q}_1-\bm{q}_2) F(\bm{q}_2)\mathrm{d}\bm{q}_1\mathrm{d}\bm{q}_2}\,,\]

where $F$ is the deviation of $\delta$ with respect to the constrained mean field

\[\bar{\delta}(\bm{q}) = \langle \delta(\bm{q})|\Gamma \rangle\,.\]

The residue $F$ is a Gaussian random field that is independent of the values $c_i$ and only depend on the details of the constraints $C_i.$ This observation enables the efficient sampling by the Hoffmann and Ribak (1991) algorithm:

• Generate an unconstrained Gaussian random field $\tilde{\delta}$ with the given power spectrum.
• Evaluate the constraints on the realization $C_i[\tilde{\delta}] = \tilde{c}_i.$
• Construct the mean field corresponding to the values $\tilde{c}_i$ and evaluate the residue

\[F = \tilde{\delta} - \xi_i(\bm{q}) \xi_{ij}^{-1} \tilde{c}_j.\]

• Add the residue $F$ to the mean field $\bar{\delta}$ to obtain the constrained realization

\[\delta = F + \xi_i(\bm{q}) \xi_{ij}^{-1} c_j.\]

with the correlation function of the random field with the constraints

\[\xi_i(\bm{q}) = \langle \delta(\bm{q}) C_i(\bm{q}_i)\rangle\,,\]

and the auto correlation function of the constraints

\[\xi_{ij} = \langle C_i(\bm{q}_i)C_j(\bm{q}_j)\rangle\,.\]

Structure formation

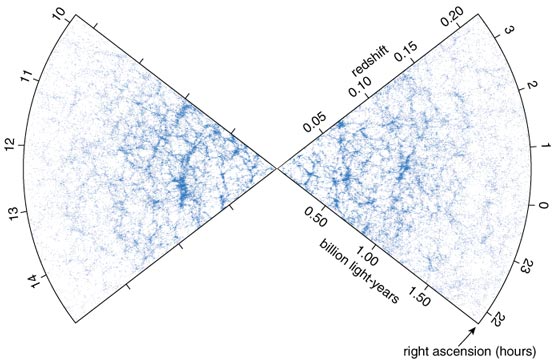

In large-scale structure formation, the cosmic web forms due to the gravitational collapse of small fluctuations in an evolving background space-time.

In an expanding universe, the gravitational potential $\phi$ is governed by the Poisson equation

\[\nabla^2 \phi = 4 \pi G \bar{\rho} a^2 \delta\,,\]

with Newton's constant $G.$ We follow the motion of matter through the map

\[\bm{x}_t(\bm{q}) = \bm{q} + \bm{s}_t(\bm{q})\,,\]

capturing the motion of a mass element starting at point $\bm{q}$ as a function of time through the displacement map $\bm{s}_t.$ The particles move according to the Euler equation

\[\frac{\partial (a \bm{v})}{\partial t} = -\nabla \phi\,,\]

with the comoving velocity $\bm{v} = a \dot{\bm{x}_t}.$ Working in terms of the momentum $\bm{p} = a^2 \dot{x}=a \bm{v}$ and using the identity

\[4 \pi G \bar{\rho} = \frac{3 H_0^2 \Omega_{0,m}}{2 a^3}\,,\]

the Poisson and Euler equations assume the form

\[\begin{align*} a \nabla^2 \phi &=\frac{3}{2} \Omega_{0,m} H_0^2 \delta\,,\\ \partial_t \bm{p} &= -\nabla \phi\,. \end{align*}\]

In these equations, the time dependence enters through the evolution of the scale factor. When the scale factor $a$ is a monotonically increasing function, it is natural to parametrise time in terms of the scale factor and express the equations of motion as

\[\begin{align*} \partial_a \bm{x} &= \frac{\bm{p}}{a^2 \dot{a}}\,,\\ \partial_a \bm{p} &= - \frac{\nabla \phi}{\dot{a}}\,. \end{align*}\]

This formalism saves us from having to solve the Friedmann equation. In this package, we solve this set of equations with a first-order Leap-Frog method, consisting of a drift and a kick operation.

Density estimation

This package includes a two-dimensional implementation of the Phase-Space Delaunay Tessellation Field Estimator (PS-DTFE) for the estimation of the density, the velocity and the number of streams fields. The method traces the dark matter sheet in phase-space and evaluates the density and velocity fields by linearly interpolating in the simplices spanning the dark matter sheet. For example, the PS-DTFE method approximates the density formula

\[\rho(\bm{x}) = \sum_{\bm{q} \in \bm{x}_t^{-1}(\bm{x})} \frac{\bar{\rho}}{|\det \nabla \bm{x}_t(\bm{q})|}\,,\]

using the $N$-body particles. For a detailed description, see the package PhaseSpaceDTFE.jl, which implements the PS-DTFE method in 3D.
